 Rear pulley not opening completely
Author Message
Silver Member
Silver Member

Joined: Sat Jul 14, 2012 9:14 am
Posts: 981
Post Rear pulley not opening completely
I have found why I cant go much over 30mph on the bugeye I am rebuilding. It seems like the rear pulley won't fully open, even by hand. As a result, the belt won't go up in the variator and I hit top speed WAY early.

I'm not exactly sure it's a pulley from which model. It's pretty much the same as the one I had on my bugeye, with what seems to be a 2009 date stamp on it. I got the pulley already assembled with a 3-pad clutch and a stiff red contra (which might be changed once the issue gets fixed; the CVT tuning seems dead-on if not for the pulley not fully opening). Not sure if the clutch is a stock 3-pad or an aftermarket one... there's no brand markings on it.

I have hand-tested prying the pulley open, putting a belt in, and compared with another pulley I have (also mounted using a red Contra and a MHR Delta clutch). One clearly allows the belt to go deeper.

I am using a stock Yamaha belt, for the records. It's not brand new, but it used to work well with my MHR Team.

What could cause the rear pulley to not fully open?

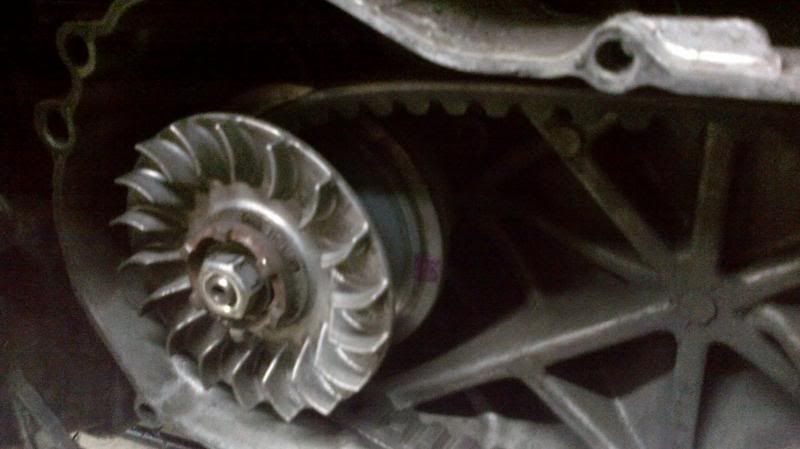

Crappy potato quality picture. I made a purple mark on the variator and went for a run. It's not really visible, but it's somewhat matching the "wear" area of the variator. I forgot to take pictures of the pulley, but nothing seems off about it. It just looks like your typical rear pulley with a 3-pad clutch and a red contra.
