 Zuma 125 Load Resistors For Led Signals
Author Message
Gold Member
Gold Member
User avatar

Joined: Fri Jun 25, 2010 6:56 am
Posts: 14287
Location: San Diego, CA
Post Zuma 125 Load Resistors For Led Signals
$10 free shipping

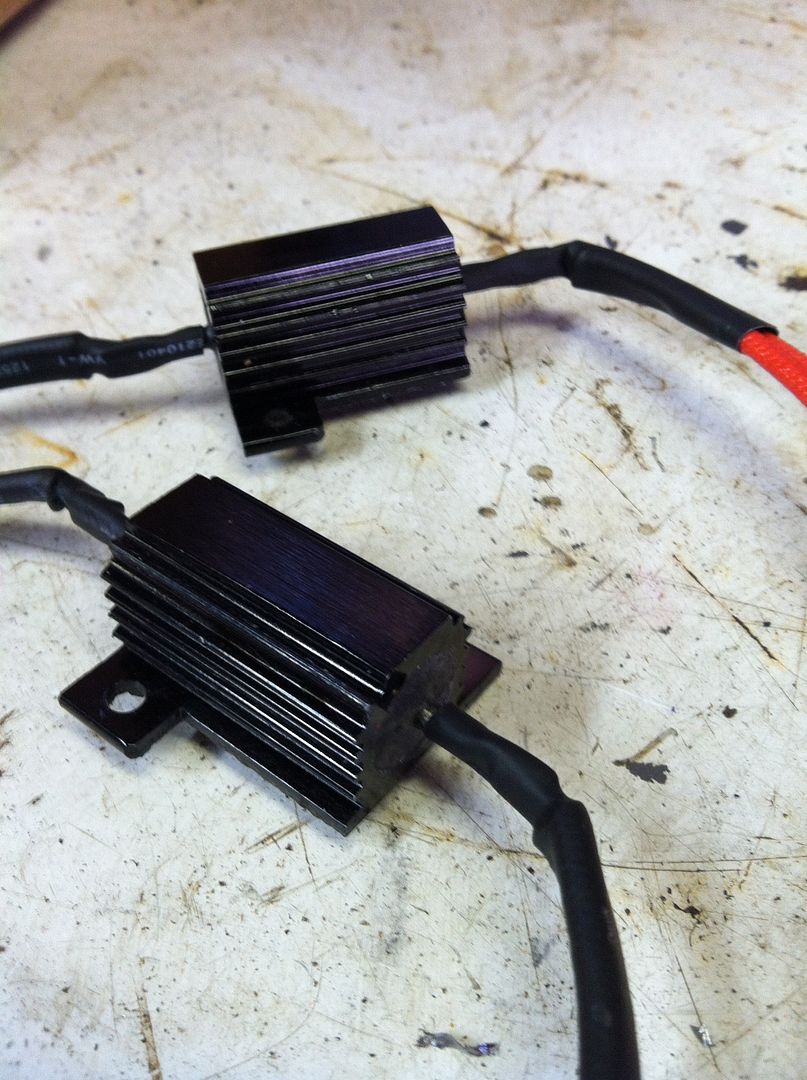

These are resistors so you can run full led signals or partial to solve any blinking problems
2 resistors included one for the left side, one for the right side
one side of resistor gets + to the bulb and + to the signal wiring

the other side of the resistor gets - to the bulb and - from wiring
thats is, can be mounted up front or on the rear
No need to buy expensive electronic flasher, keep the stock flasher and indicator




Basically like this
but my resistor has 2 wires each side

_________________

2010 Zuma 155cc
BWS X Digital Gauges<>Clear Smoke BWS 125 Turn Signal Covers<>Billet Bar Ends<>Front Brake Rotor 260mm<>Razor Cam Covers<>NCY Breather Assembly<>Polini EVO Clutch Bell<>Anodized Orange Dipstick<>RRGS Front and Rear Shocks<>Dual 5000K HID's 35w High/Low Beam<>Black Adjustable Brake levers<>Halo Led's<>TST 2 Stage Variator 9gL 10gS <>NCY Oil Cooler<>Yamaha Skid Plate<>NCY Contra Spring Bearing<>1000 Rpm RRGS Contra Spring<>Yoshimura Exhaust<>NCY Direct Ignition Coil<>Lightweight Cooling Fan<>Koso Cable Clamps<>High Lift Cam+Lightened Cam Sprocket<>Underseat Storage Bag<>Stage 6 (Koso) Clutch<>Accel Handlebars<>Koso Brake Light<>Lightweight Swingarm<>RRGS 4 Pot Caliper (PH80)<>Stainless Braided Brake Line<>Lightened F|ywheel<>OEM Headlight Screens<>Zubiku Wing<>Air Horn<>9 inch stretch<>Koso High Flow Filter/Cover<>RPM 10 Spoke Wheels<>Digital Camo Vinyl Wrap<>SEP Cvt Covers





Image Image Image


Last edited by ZUMIKE on Mon Oct 27, 2014 9:20 am, edited 1 time in total.



Sun Oct 26, 2014 7:40 am
Profile WWW
Gold Member
Gold Member
User avatar

Joined: Wed Oct 08, 2008 5:23 am
Posts: 24736
Location: in a Louisiana swamp ... somewhere
Post Re: Zuma 125 Load Resistors For Led Signals
Couldn't you provide a wiring diagram -or- instructions ??

_________________
Installed 164 bbk in 2009


Sun Oct 26, 2014 5:53 pm
Profile
Gold Member
Gold Member
User avatar

Joined: Fri Jun 25, 2010 6:56 am
Posts: 14287
Location: San Diego, CA
Post Re: Zuma 125 Load Resistors For Led Signals
I did
In first post

_________________

2010 Zuma 155cc
BWS X Digital Gauges<>Clear Smoke BWS 125 Turn Signal Covers<>Billet Bar Ends<>Front Brake Rotor 260mm<>Razor Cam Covers<>NCY Breather Assembly<>Polini EVO Clutch Bell<>Anodized Orange Dipstick<>RRGS Front and Rear Shocks<>Dual 5000K HID's 35w High/Low Beam<>Black Adjustable Brake levers<>Halo Led's<>TST 2 Stage Variator 9gL 10gS <>NCY Oil Cooler<>Yamaha Skid Plate<>NCY Contra Spring Bearing<>1000 Rpm RRGS Contra Spring<>Yoshimura Exhaust<>NCY Direct Ignition Coil<>Lightweight Cooling Fan<>Koso Cable Clamps<>High Lift Cam+Lightened Cam Sprocket<>Underseat Storage Bag<>Stage 6 (Koso) Clutch<>Accel Handlebars<>Koso Brake Light<>Lightweight Swingarm<>RRGS 4 Pot Caliper (PH80)<>Stainless Braided Brake Line<>Lightened F|ywheel<>OEM Headlight Screens<>Zubiku Wing<>Air Horn<>9 inch stretch<>Koso High Flow Filter/Cover<>RPM 10 Spoke Wheels<>Digital Camo Vinyl Wrap<>SEP Cvt Covers





Image Image Image


Sun Oct 26, 2014 7:11 pm
Profile WWW
Gold Member
Gold Member
User avatar

Joined: Wed Oct 08, 2008 5:23 am
Posts: 24736
Location: in a Louisiana swamp ... somewhere
Post Re: Zuma 125 Load Resistors For Led Signals
Sorry.

That's actually unrecognizable as INSTALLATION INSTRUCTIONS.

_________________
Installed 164 bbk in 2009


Sun Oct 26, 2014 9:51 pm
